General Plumbing in Providence, RI

Remove and dispose of accessible existing drain piping associated with the washing machine that was previously installed incorrectly.

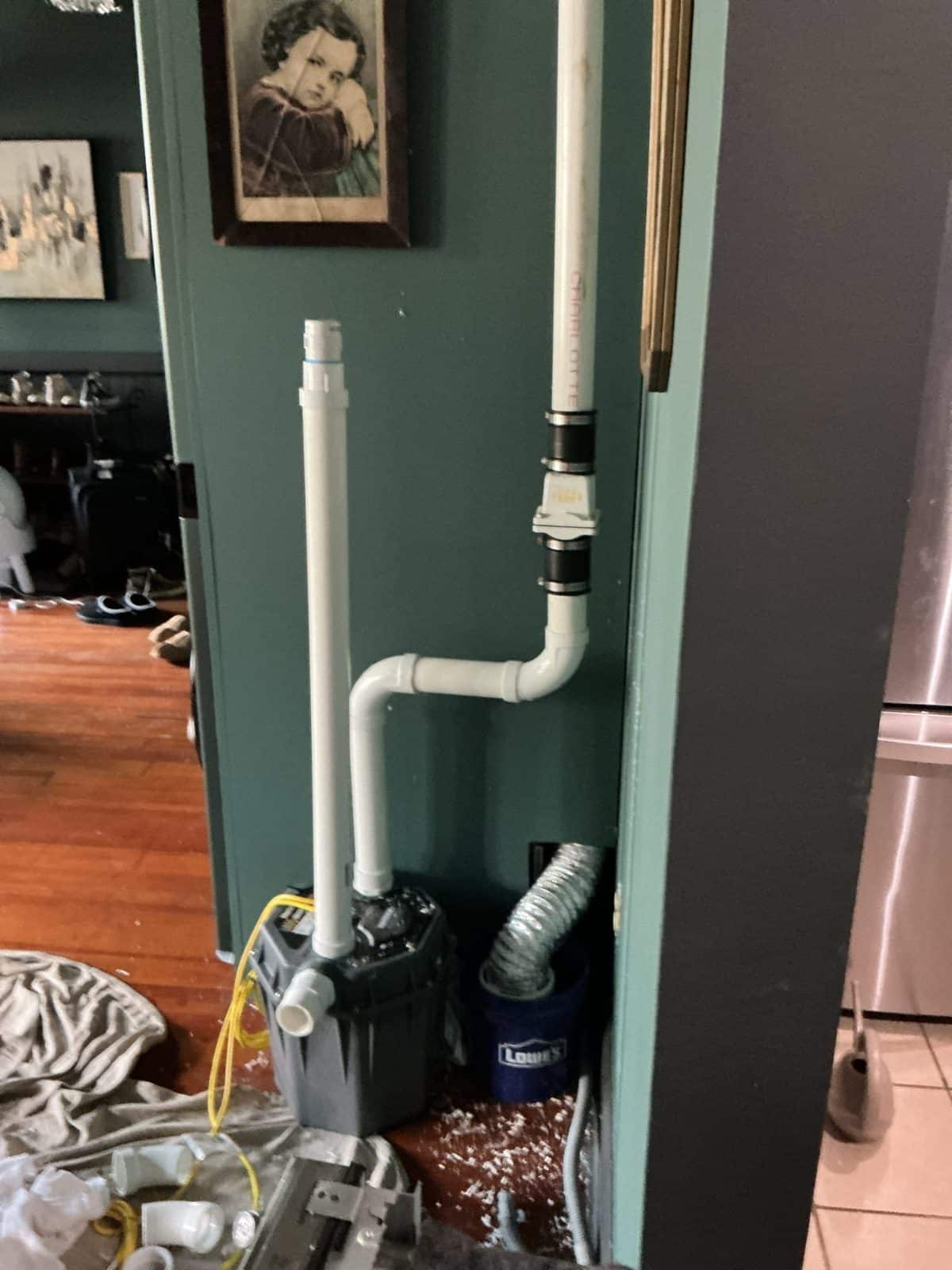

Furnish and install one new **Liberty Pumps 405/A drain pump system** adjacent to the existing stackable washing machine.

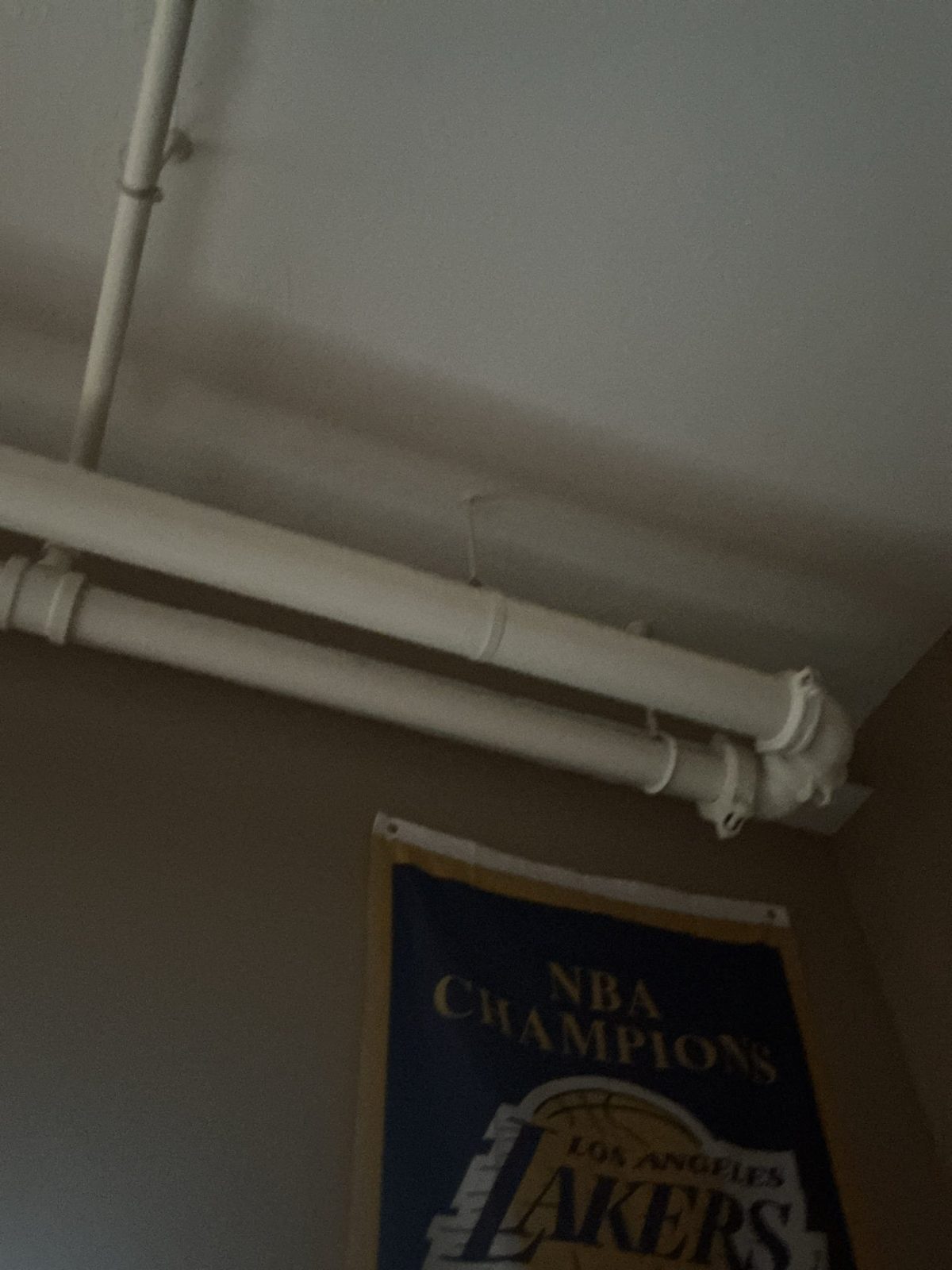

Install new 2" and 1-1/2" PVC drainage piping and fittings as required to provide a properly configured drainage system from the washing machine/pump location to the existing building drain connection.

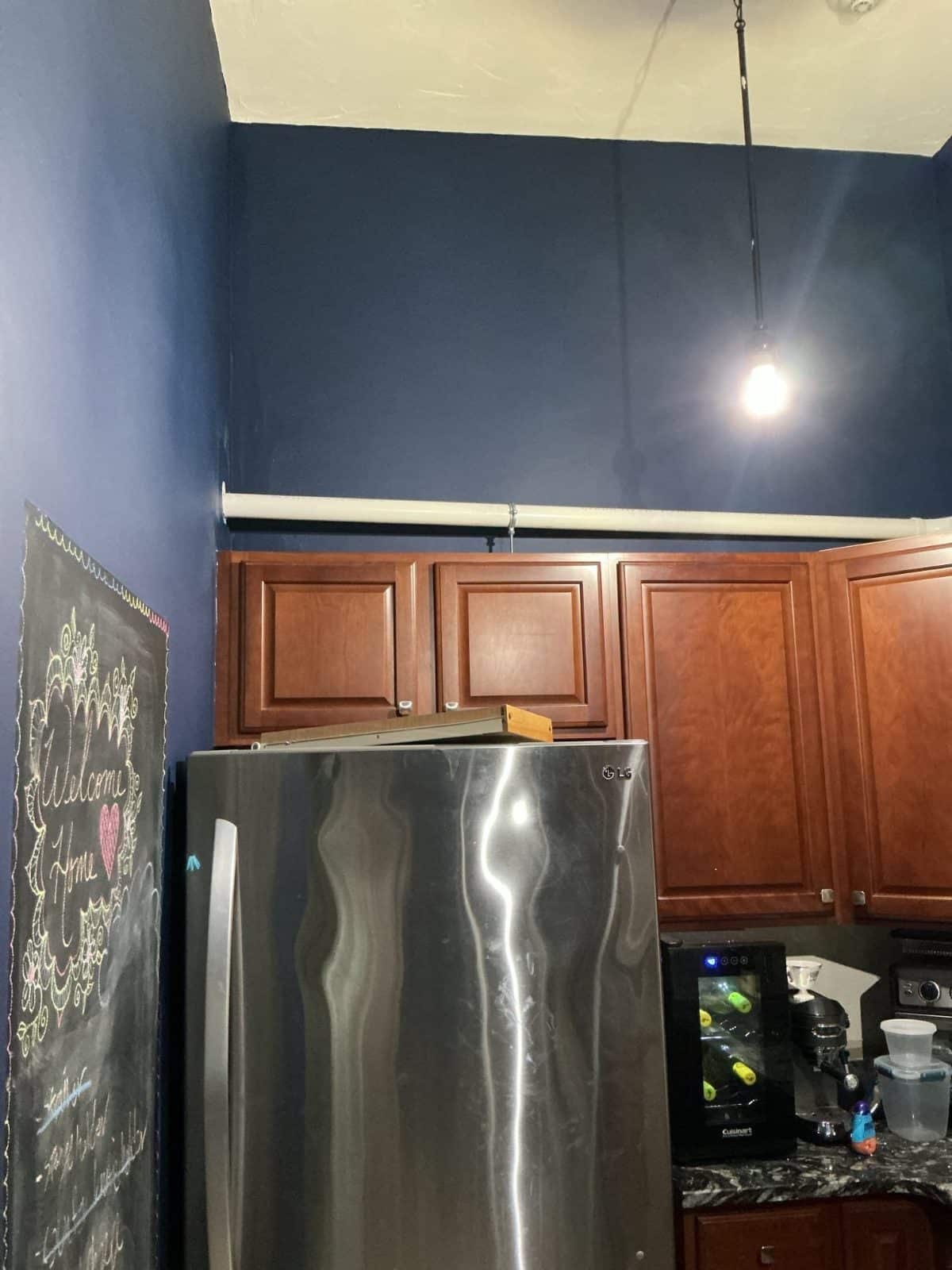

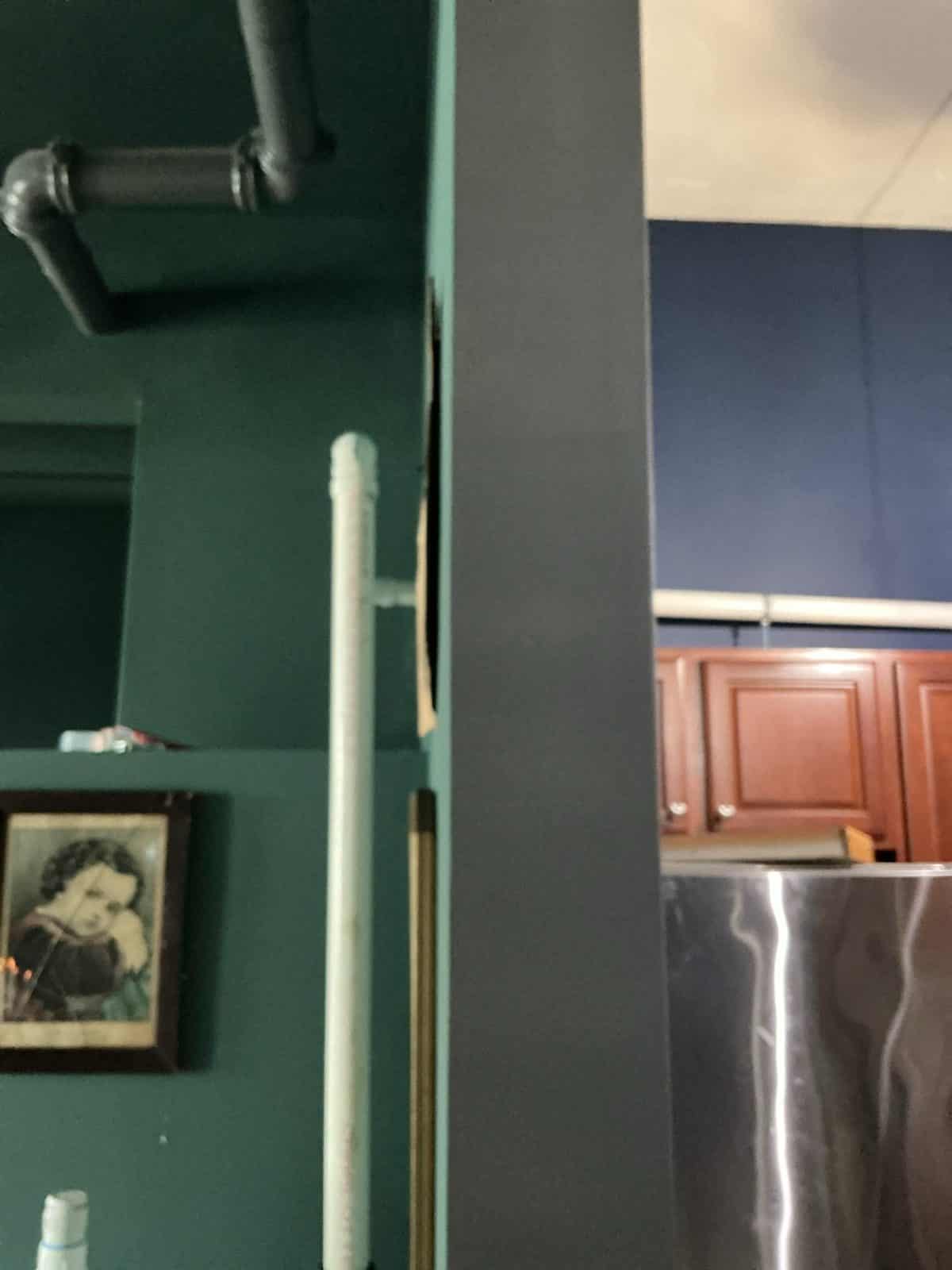

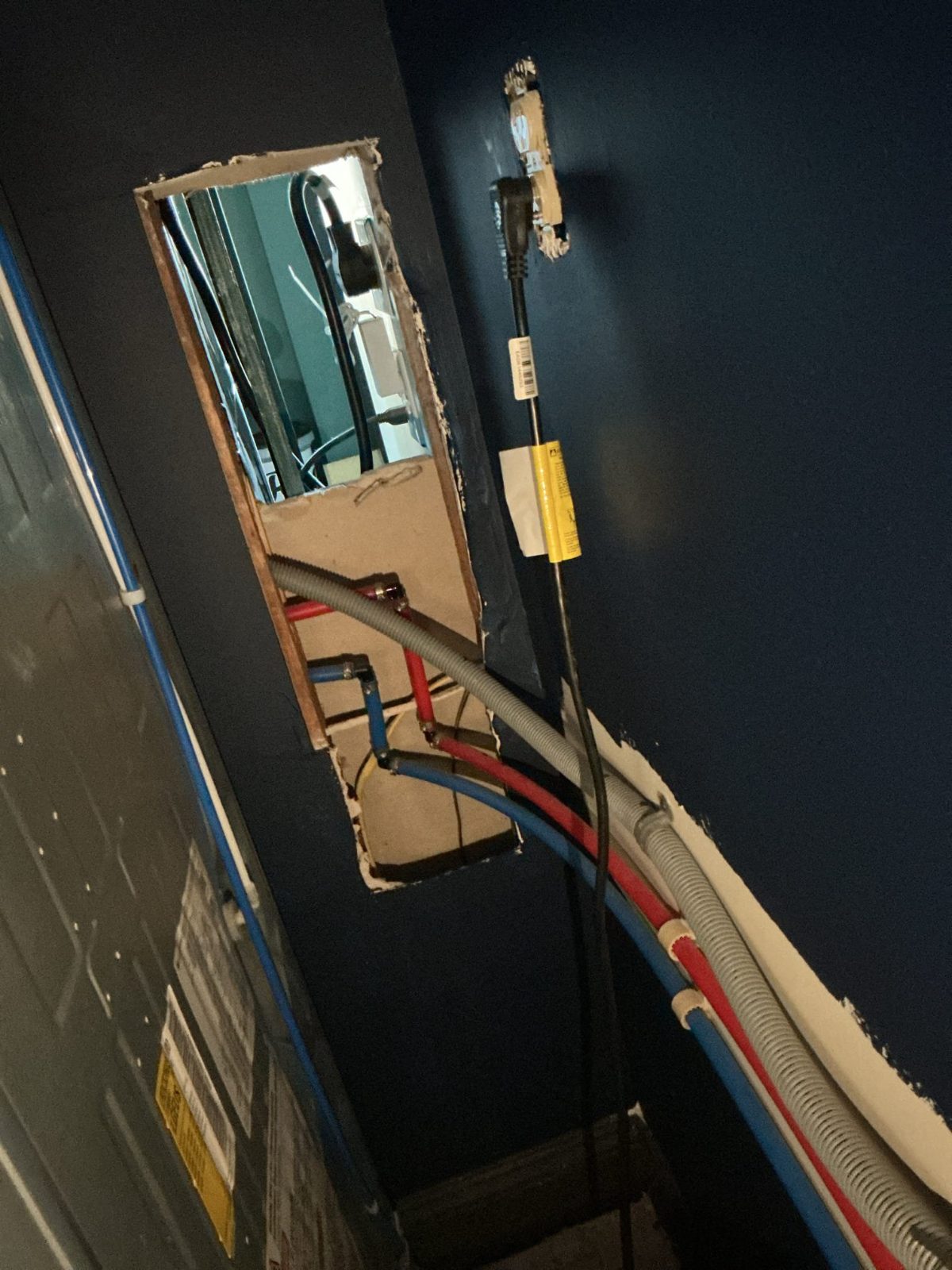

Route new drainage piping from the pump location in the living room/laundry area, through the kitchen wall, and across the top of the existing kitchen cabinets to the appropriate drain location within the wall.

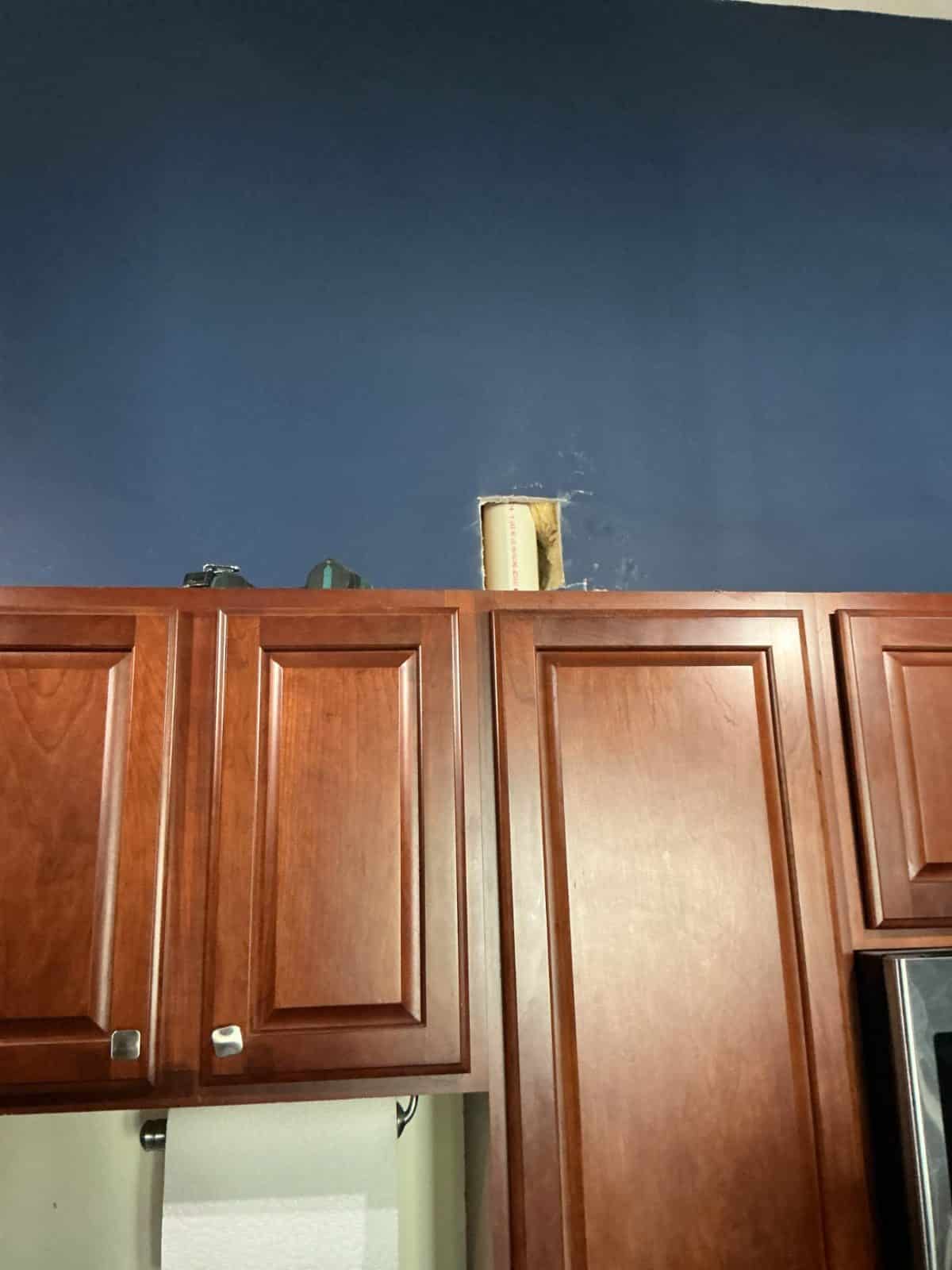

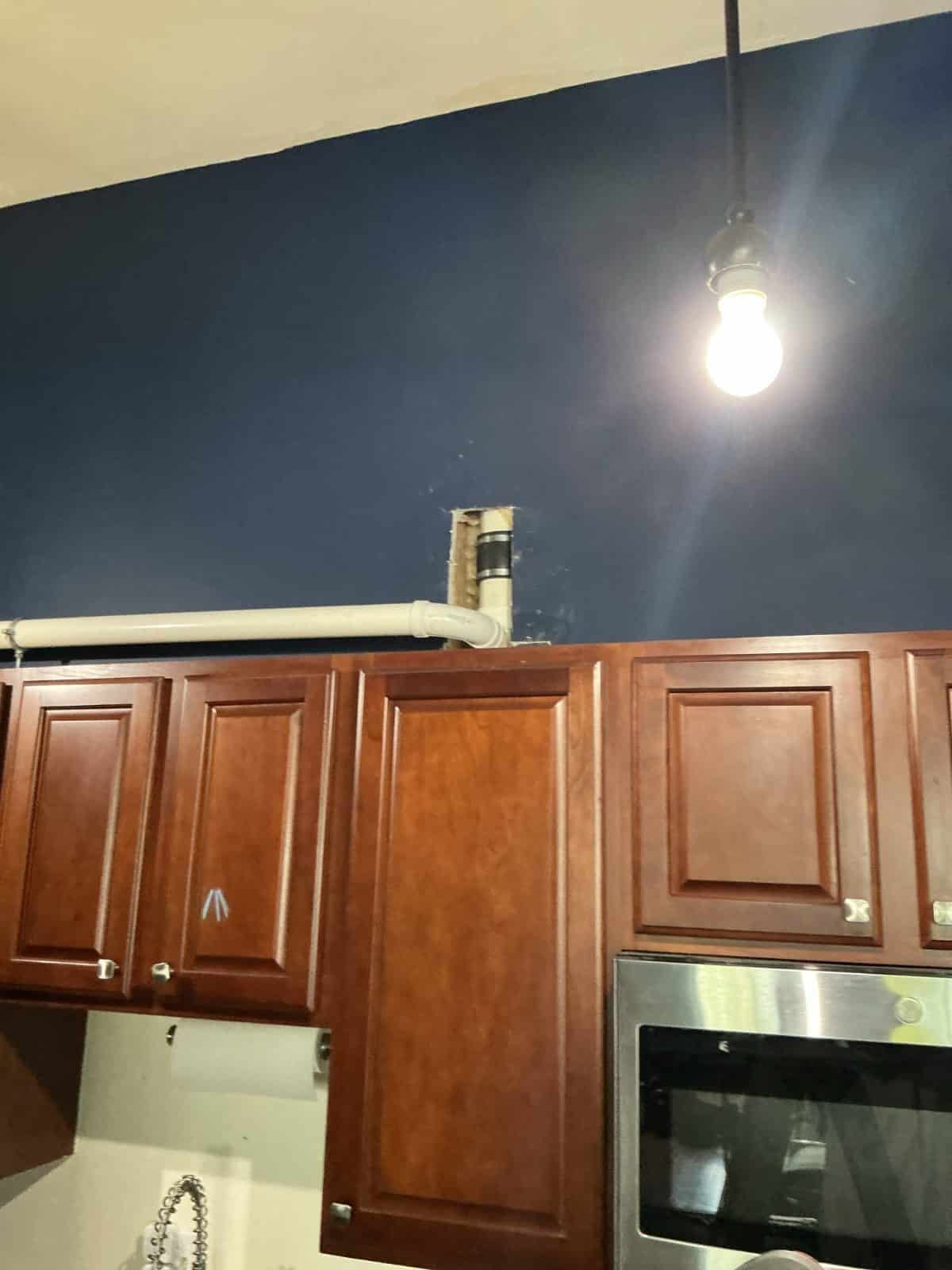

The exact location and configuration of the existing concealed drain piping will need to be determined at the time of installation. Evergreen Services will utilize a **borescope and small exploratory openings in the sheetrock above the kitchen cabinets** to locate and verify the existing drainage piping while minimizing disturbance to visible finished areas.
Exploratory openings will be intentionally located above the cabinets whenever reasonably possible, so they are concealed from normal view.
Connect the new pump discharge and drainage piping to the existing building drainage system once a suitable connection point has been identified.
Install required PVC fittings, supports, hangers, transitions, check valve and/or other manufacturer-required drainage components as applicable to the installation.
Connect the existing stackable washing machine drain to the new Liberty 405/A system.
Upon completion, fill and operate the pump through multiple cycles to verify proper pump operation, drainage, and accessible connections for leakage. - Customer-Supplied Dishwasher Installation

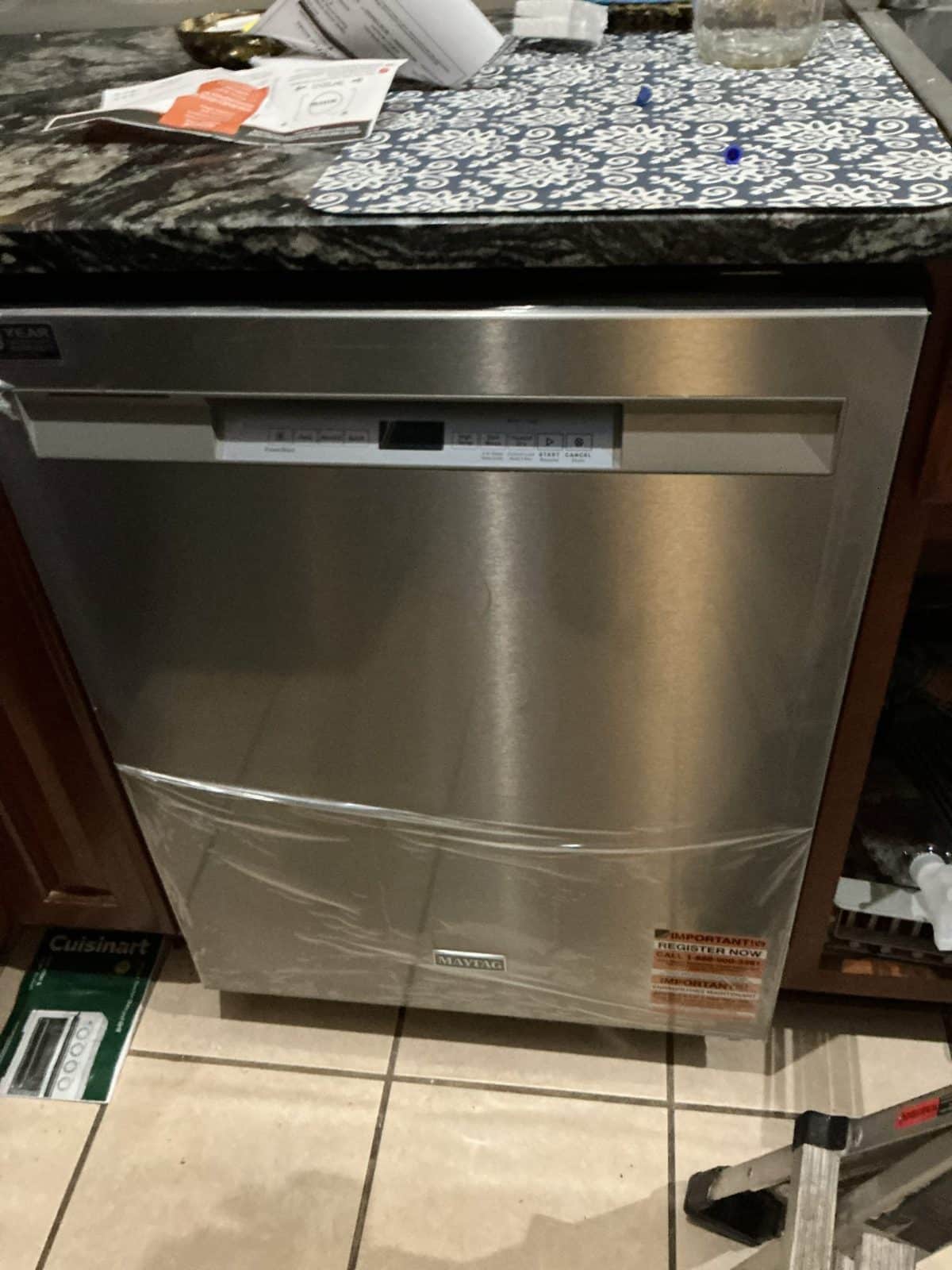

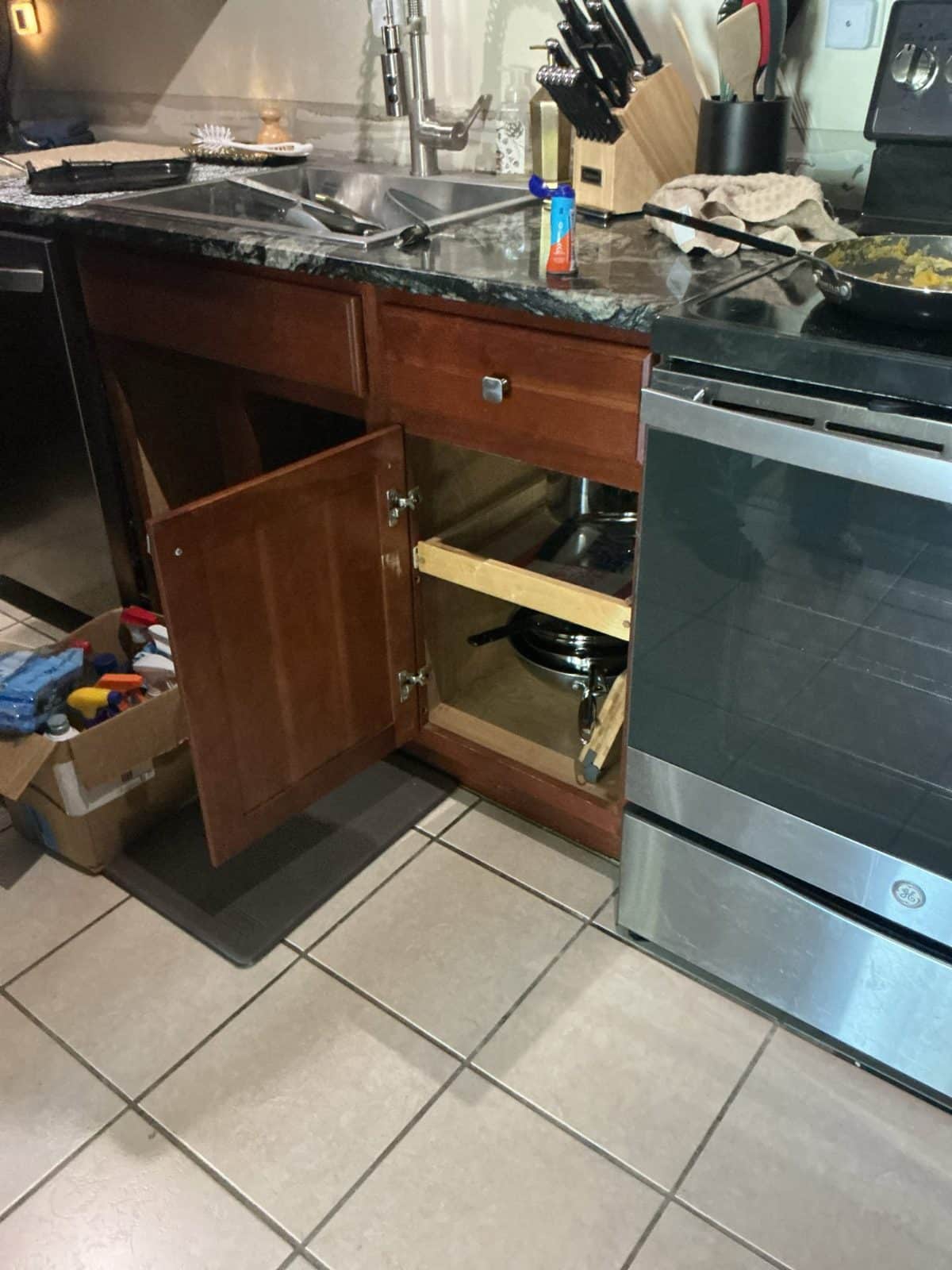

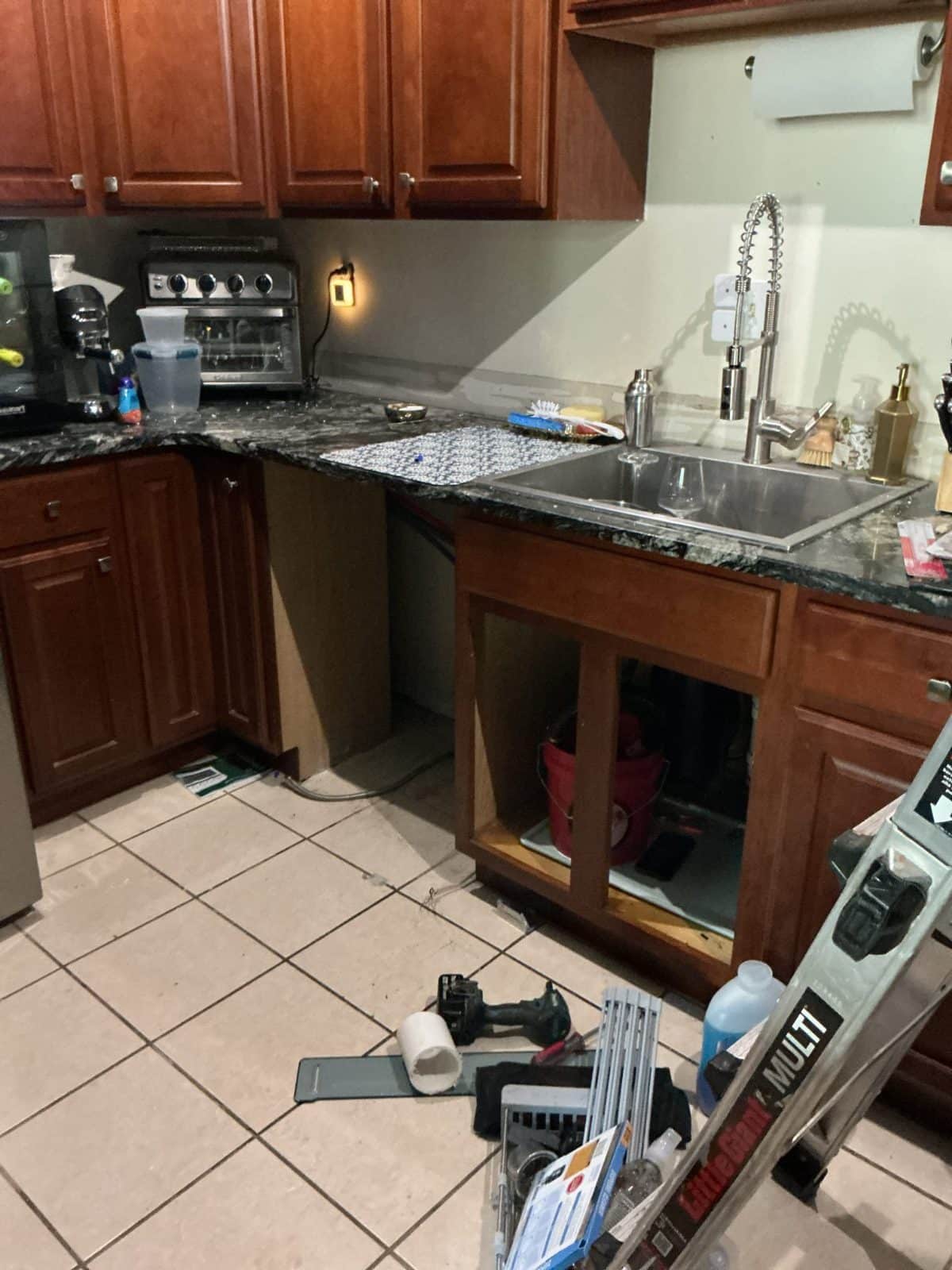

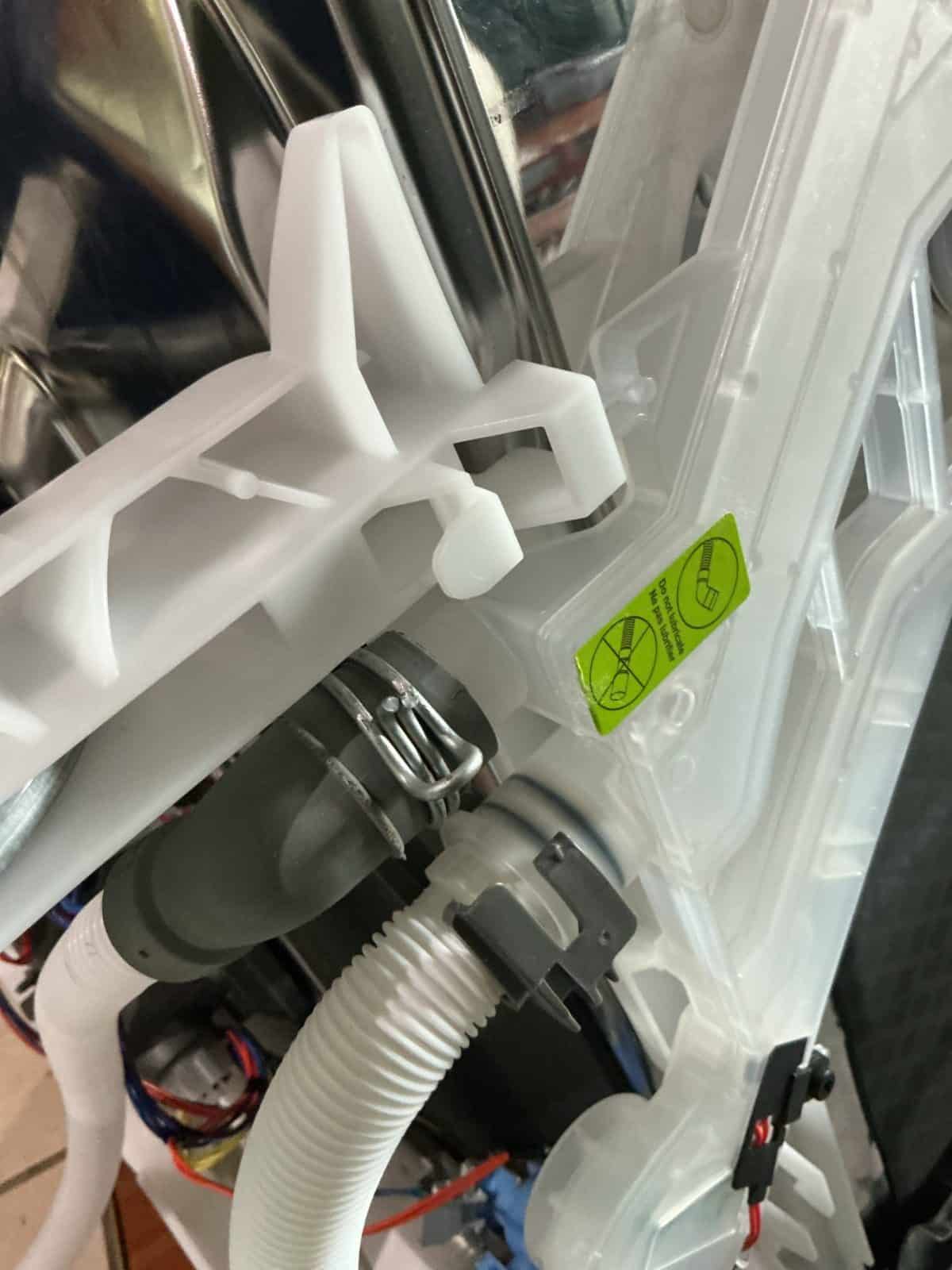

While on site performing the above plumbing work, Evergreen Services will remove and disconnect the existing dishwasher and install one new customer-supplied dishwasher in the existing location. Installation includes connecting new
